What is Basic Electronics Components: Essential Guide for Beginners

Have you ever wondered what makes your phone, computer, or TV actually work? The answer lies in basic electronic components.

These tiny parts are the building blocks of all electronic devices, and understanding them can open up a whole new world for you. Whether you’re a beginner or just curious, knowing about these components will help you see technology in a fresh way.

Ready to discover what these essential pieces are and how they shape the gadgets you use every day? Keep reading, and you’ll find out everything you need to know.

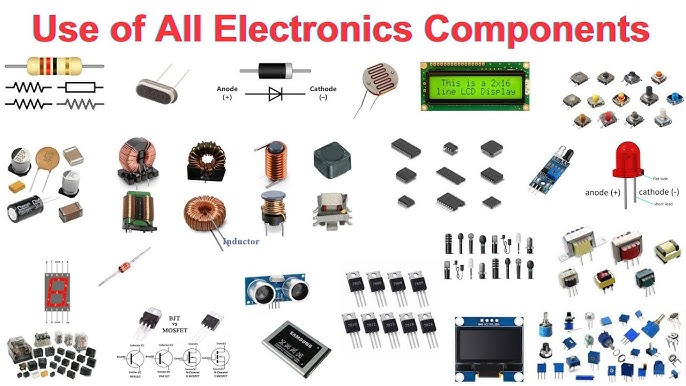

Credit: www.youtube.com

Electronic Components Basics

Understanding basic electronic components is essential for anyone interested in electronics. These components form the building blocks of electronic circuits. They work together to perform various functions, such as controlling, processing, and transmitting signals. Let’s dive deeper into the basics of electronic components.

What Are Electronic Components

Electronic components are parts used in electronic devices. They manipulate the flow of electricity. Each component has a specific role. Together, they create functional circuits. These components include resistors, capacitors, diodes, and transistors. Each plays a unique part in the circuit’s operation.

Types Of Components

Components are categorized into two main types: active and passive. Active components need a power source to function. They include transistors and integrated circuits. Passive components do not require a power source. These include resistors, capacitors, and inductors. Each type has a different role in circuit design.

How Components Work Together

Electronic components work together to achieve a common goal. Resistors limit current flow, protecting other components. Capacitors store and release electrical energy when needed. Transistors amplify signals, making them stronger. Diodes control the direction of current flow. Together, they create circuits that perform complex tasks.

Passive Components

Passive components are the basic building blocks in electronics. They do not need power to operate. Instead, they control the flow of electric current. These parts help circuits work smoothly and safely. Common passive components include resistors, capacitors, and inductors. Each one has a special role in managing electrical energy.

Resistors And Their Uses

Resistors limit the amount of current in a circuit. They protect sensitive parts from too much electricity. These components come in many sizes and shapes. They are found in almost every electronic device. Resistors help control voltage and current levels. They also create specific voltage drops needed for circuits to function.

Capacitors Explained

Capacitors store and release electrical energy quickly. They act like small batteries that charge and discharge fast. Capacitors smooth out voltage changes and filter noise. They help stabilize power supply in electronic circuits. Capacitors come in different types, such as ceramic and electrolytic. Each type suits different applications and frequencies.

Inductors And Coils

Inductors store energy in a magnetic field when current flows. They resist sudden changes in current, which helps filter signals. Coils are the physical form of inductors. Inductors are used in radio and power circuits. They help tune frequencies and block high-frequency noise. Inductors vary in size, wire thickness, and core material.

Active Components

Active components are the heart of any electronic circuit. They can control the flow of electricity and amplify signals, making them essential for a wide range of devices you use daily. Understanding these components helps you design circuits that perform specific tasks efficiently.

Diodes And Their Functions

Diodes allow current to flow in one direction only, acting like a one-way valve for electricity. This simple behavior helps protect circuits from damage caused by reverse voltage. You’ll often find diodes in power supplies and signal demodulation tasks.

Have you ever wondered why your phone charger doesn’t fry your device when plugged in incorrectly? That’s the diode at work, ensuring current flows safely.

Transistors Basics

Transistors are tiny switches or amplifiers inside your gadgets. By applying a small current to one part, you can control a much larger current flowing through another part. This ability makes transistors critical for amplifying signals and switching electronic signals on and off.

Think about the sound volume on your headphones—transistors amplify the weak audio signals from your phone to a level your ears can hear clearly.

Integrated Circuits Overview

Integrated circuits (ICs) combine many active components like transistors and diodes into a tiny chip. This packaging allows complex circuits to fit into small spaces, powering everything from calculators to smartphones. ICs save you time and effort compared to building circuits from individual parts.

Have you ever opened an old radio or computer? Inside, you’ll see these tiny chips making everything work seamlessly without bulky wiring.

Essential Tools For Beginners

Starting with basic electronics means equipping yourself with the right tools. These tools will not only make your projects easier but also more precise and enjoyable. Having essential tools at hand saves you from frustration and helps you learn faster.

Multimeters And Testers

A multimeter is your best friend for measuring voltage, current, and resistance. It helps you check if components and circuits are working correctly. Digital multimeters are easy to read and often come with additional features like continuity testing.

Testers, like continuity testers or logic probes, can quickly tell if a circuit is complete or if a digital signal is high or low. Owning these tools means you can troubleshoot problems effectively. Have you ever spent hours guessing what’s wrong with a circuit? A multimeter ends that guessing game.

Soldering Equipment

Soldering irons allow you to join electronic components securely. A good soldering station with adjustable temperature control helps prevent damage to sensitive parts. Beginners should start with a soldering iron that heats up quickly and has a comfortable grip.

Besides the iron, you’ll need solder wire and a stand to keep your workspace safe. Don’t forget a solder sucker or wick to fix mistakes – they save you a lot of trouble. How often do you think you’ll need to redo connections? Having the right gear makes fixes less painful.

Breadboards And Prototyping

Breadboards let you build circuits without soldering. They are perfect for testing ideas quickly and making changes on the fly. This tool encourages experimentation and learning through trial and error.

You can plug in components and wires to see how they work together before making anything permanent. It’s a practical way to understand circuit behavior and catch mistakes early. Have you tried a project that failed because you skipped this step? Breadboards help you avoid that.

Reading Component Values

Reading component values is essential for anyone working with electronics. Each component has markings or codes that tell you its specifications. Understanding these markings helps you select the right parts for your projects. It also prevents mistakes that can cause circuits to fail.

Many components use color codes, numbers, or letters to show their values. Learning how to read these codes makes your work faster and more accurate. Below are the common methods to identify values on basic electronic components.

Color Codes On Resistors

Resistors use colored bands to show their resistance value. Each color stands for a number from 0 to 9. The first two bands give the first two digits. The third band is the multiplier. A fourth band shows tolerance.

For example, a resistor with bands brown, black, red means 1 (brown), 0 (black), ×100 (red), or 1,000 ohms. The tolerance band shows how much the value may vary.

Capacitor Ratings

Capacitors usually have their capacitance printed in microfarads (µF), nanofarads (nF), or picofarads (pF). Some use numbers and letters to show these values.

• Three-digit codes: The first two digits are numbers. The third is the multiplier in picofarads.
• Voltage rating: Printed near the capacitance to show the max voltage.
• Polarity: Electrolytic capacitors have a marked negative side.

For example, a capacitor marked 104 means 10 followed by 4 zeros in pF, or 100,000 pF (0.1 µF). Always check the voltage rating to avoid damage.

Identifying Diode And Transistor Types

Diodes and transistors have printed codes or numbers to identify their type. These codes help you find their datasheets and specs.

• Diodes often start with “1N” followed by numbers, like 1N4001.
• Transistors have codes starting with letters like “BC” or “2N”.
• Look for flat sides or pin layouts to confirm the part.

Using the code, you can find details like voltage limits, current, and gain. This info is important for proper use in circuits.

Credit: www.electronicsandyou.com

Common Circuits For Practice

Getting hands-on with common circuits is the best way to understand basic electronic components. These circuits help you see how individual parts like resistors, capacitors, and transistors work together. Practicing with simple setups builds your confidence and prepares you for more complex projects.

Simple Led Circuits

LED circuits are a great starting point because they clearly show how electricity flows. You only need a power source, a resistor, and an LED. By changing the resistor value, you can control the brightness of the LED, which teaches you about current regulation.

Try wiring multiple LEDs in series and parallel. This helps you understand voltage and current distribution. Have you noticed how LEDs behave differently in each setup? Experimenting here makes the concepts real.

Basic Amplifier Setup

A basic amplifier circuit introduces you to transistors and how they boost signals. Using a single transistor, a few resistors, and capacitors, you can amplify a weak audio signal. This circuit is a practical way to learn about input, output, and gain.

Building this will improve your skills in reading datasheets and selecting component values. It also raises questions like: How does changing a resistor affect amplification? Playing with these variables deepens your understanding of transistor behavior.

Switching Circuits

Switching circuits teach control over electronic flow using components like transistors or relays. Simple circuits using a push button to switch an LED on and off reveal how switches manage current paths. These circuits form the basis for digital electronics and automation.

Try adding a debounce circuit to your switch setup. It shows the importance of clean signals and timing in electronics. What practical devices could you create once you master switching control?

Safety Tips In Electronics

Working with basic electronic components can be exciting, but it requires careful attention to safety. Ignoring simple precautions can lead to damaged parts, injury, or worse. Let’s break down essential safety tips that protect both you and your projects.

Handling Components Safely

Always ground yourself before touching sensitive parts like microchips or transistors. Static electricity can silently destroy these components, even if you don’t feel a shock.

Use anti-static wristbands or mats to prevent accidental damage. Handle components by their edges—avoid touching the metal pins or circuit paths directly.

Think about how you store your parts. Keep them in labeled, anti-static containers to avoid confusion and harm. Have you ever lost a tiny resistor because it rolled off your workspace? That’s why organization matters.

Avoiding Electrical Hazards

Never work on a live circuit. Always disconnect power before testing or making changes. This simple step prevents shocks and shorts.

Use insulated tools designed for electronics. Regular screwdrivers or pliers might conduct electricity and cause accidents.

Be mindful of the voltage levels you’re working with. Low voltage can still cause burns or sparks if mishandled. Have you ever felt a surprising zap from a 9V battery? It’s a small reminder to stay cautious.

Proper Workspace Setup

Create a clean, well-lit area dedicated to your electronic projects. Clutter can lead to mistakes or lost components.

Ensure your workspace has good ventilation, especially if soldering. Fumes can irritate your eyes and lungs over time.

Keep a fire extinguisher nearby, and know how to use it. Electronics might seem harmless, but overheating or faulty wiring can start fires.

Credit: www.electronicsandyou.com

Frequently Asked Questions

What Are Basic Electronic Components?

Basic electronic components are fundamental parts used to build electronic circuits. They include resistors, capacitors, diodes, transistors, and inductors. Each component has a specific function, such as controlling current, storing energy, or amplifying signals. These components form the foundation of all electronic devices.

How Do Resistors Work In Electronics?

Resistors limit or regulate electric current flow in a circuit. They provide resistance measured in ohms (Ω). By controlling current, resistors protect sensitive components and manage voltage levels, ensuring proper circuit operation. They are essential for adjusting signal levels and dividing voltages.

What Role Do Capacitors Play?

Capacitors store and release electrical energy in a circuit. They consist of two conductive plates separated by an insulator. Capacitors smooth voltage fluctuations, filter signals, and enable timing functions. They are vital in power supplies and signal processing applications.

Why Are Diodes Important In Circuits?

Diodes allow electric current to flow in only one direction. This property protects circuits from reverse voltage damage. Diodes are used for rectification, signal demodulation, and voltage regulation. They ensure current flows correctly and prevent potential component failure.

Conclusion

Basic electronic components form the foundation of all electronic devices. They help control and manage electric currents. Understanding these parts makes learning electronics easier. Each component has a simple job but works together in circuits. Knowing their functions helps build and fix devices.

Start with small projects to see how they work. This knowledge opens doors to many technology areas. Keep exploring and practicing to gain confidence. Electronics become less confusing with time and effort. Simple steps lead to great learning in electronics.
